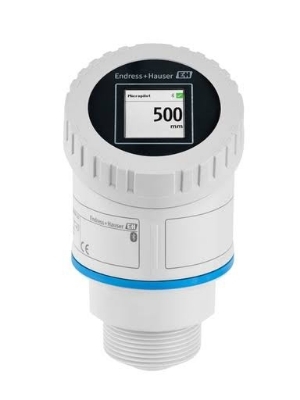

Radar Level Transmitter

Radar Level Transmitter Specification

Sensor Type
Non Contact Radar

Interface
Blutooth

Signal Type
Analog

Measurement Range
0-20Mtr

Product Type
Level Sensor/Transmitter

Material
Polycorbonate

Input
12 to 30 VDC

Output
4-20ma

Function
HART, BLUTOOTH, Touch Display

Usage
Level Sensing

Accuracy
+-2mm %

Resolution
1 mm

Voltage
12-30VDC Volt (v)

Warranty
1 year

Radar Level Transmitter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
8-10 days Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About Radar Level Transmitter

Level measurement in liquids and bulk solids Application a c Continuous, non-contact level measurement of liquids and bulk solids a c Degree of protection: IP66/67 / NEMA Type 4X a c Maximum measuring range up to 30 m (98 ft) a c Process temperature: a 40 to 80 A C (a 40 to 176 A F) a c Process pressure: a 1 to 3 bar (a 14 to 43 psi) a c Accuracy: Up to A 2 mm (0.08 in) a c International explosion protection certificates

Precise Non-Contact Measurement

Utilizing advanced radar technology, this transmitter provides accurate, non-contact measurement up to 20 meters. With a high resolution of 1 mm and 2 mm accuracy, it reliably senses liquid or solid levels in various tanks or vessels, reducing maintenance and increasing operational safety.

Modern Connectivity & User Interface

This device supports both HART and Bluetooth connectivity, allowing for convenient wireless configuration and real-time data access. The intuitive touch display further simplifies operation and calibration, making it user-friendly for technicians in different environments.

Durable and Versatile Construction

Housed in a polycarbonate enclosure, the radar level transmitter is built to withstand tough industrial settings. Its wide input voltage range and analog output make it suitable for diverse level sensing applications, supporting Indian service providers, suppliers, and traders.

FAQ's of Radar Level Transmitter:

Q: How does the radar level transmitter operate for non-contact level sensing?

A: The radar level transmitter works by emitting microwave signals toward the material surface. These signals reflect back to the sensor, allowing it to determine the distance and thus the level of the material without the device physically touching the substance being measured.

Q: What benefits does Bluetooth connectivity offer in this radar level transmitter?

A: Bluetooth connectivity enables wireless communication, making it easy to configure, monitor, and troubleshoot the device remotely using compatible devices. This feature reduces setup time and allows technicians to access sensor data without having to physically approach the transmitter.

Q: When should I use this radar level transmitter instead of traditional contact sensors?

A: This transmitter is ideal for situations where contact with the measured substance is undesirable or impractical, such as with corrosive materials, hygienic applications, or when maintenance access is limited. Its non-contact design reduces wear and contamination risks.

Q: Where can the radar level transmitter be installed for optimal performance?

A: It can be installed in tanks, silos, or open vessels where level measurement for liquids or solids up to 20 meters is required. It is suitable for use in various industrial sectors, including chemical processing, water treatment, and food industries across India.

Q: What is the process for configuring the touch display and setting up outputs?

A: Configuration is straightforward-using the integrated touch display, users can navigate menus to set up range, calibration, and output parameters. The 4-20 mA analog output can then be linked to external controllers or monitoring systems for continuous level reporting.

Q: What usage scenarios are best for this radar level transmitter?

A: It is most effective for continuous level monitoring in environments requiring high accuracy and reliability, such as inventory management, process control, and safety compliance in industrial plants where remote access and minimal maintenance are important.

Q: What warranty and support options are available for customers in India?

A: The radar level transmitter comes with a one-year warranty. As a product supplied, traded, and serviced in India, customers have access to prompt support for installation, maintenance, and after-sales service from local service providers.
