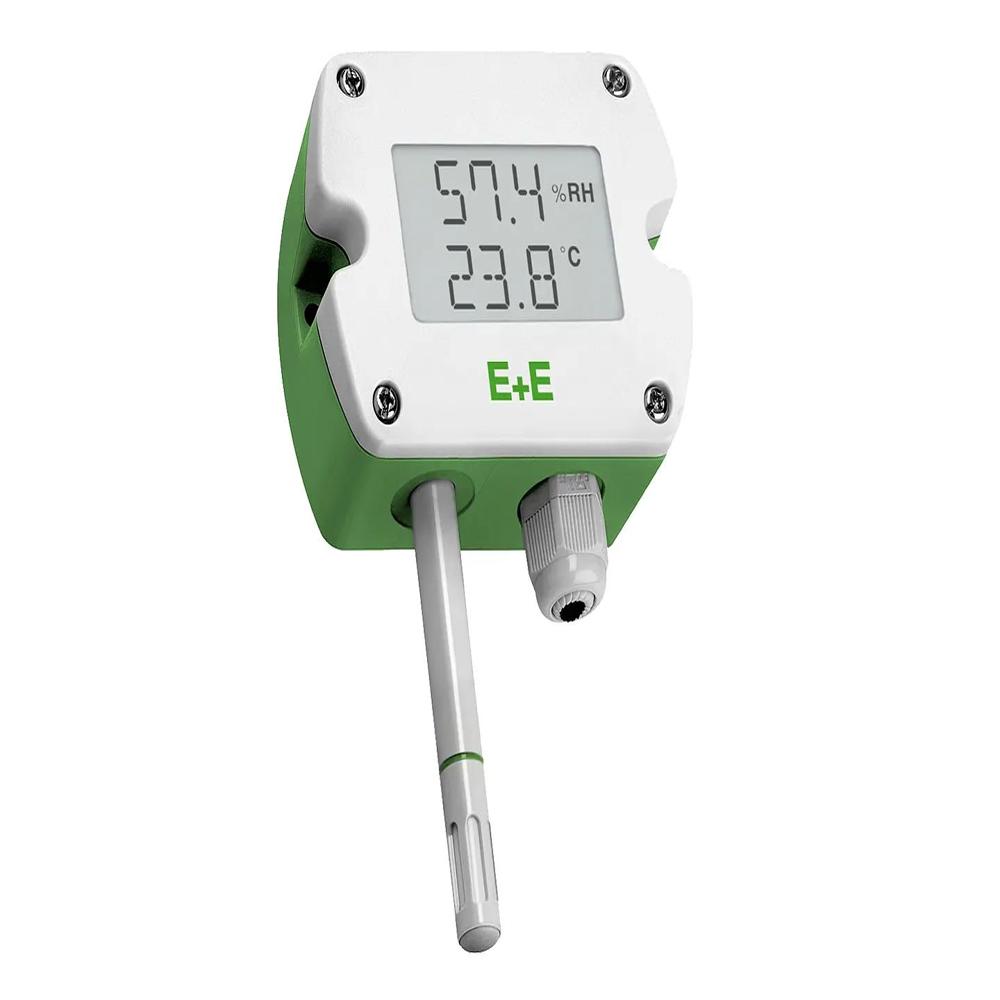

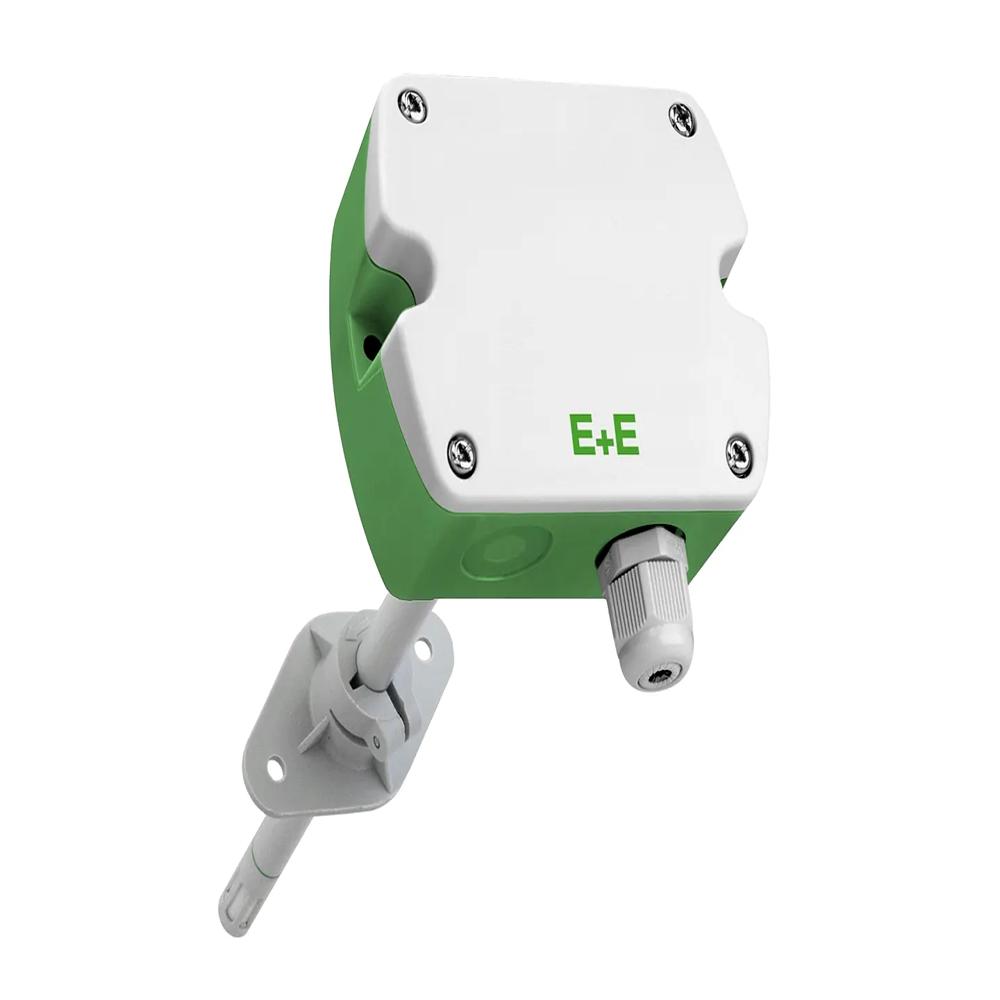

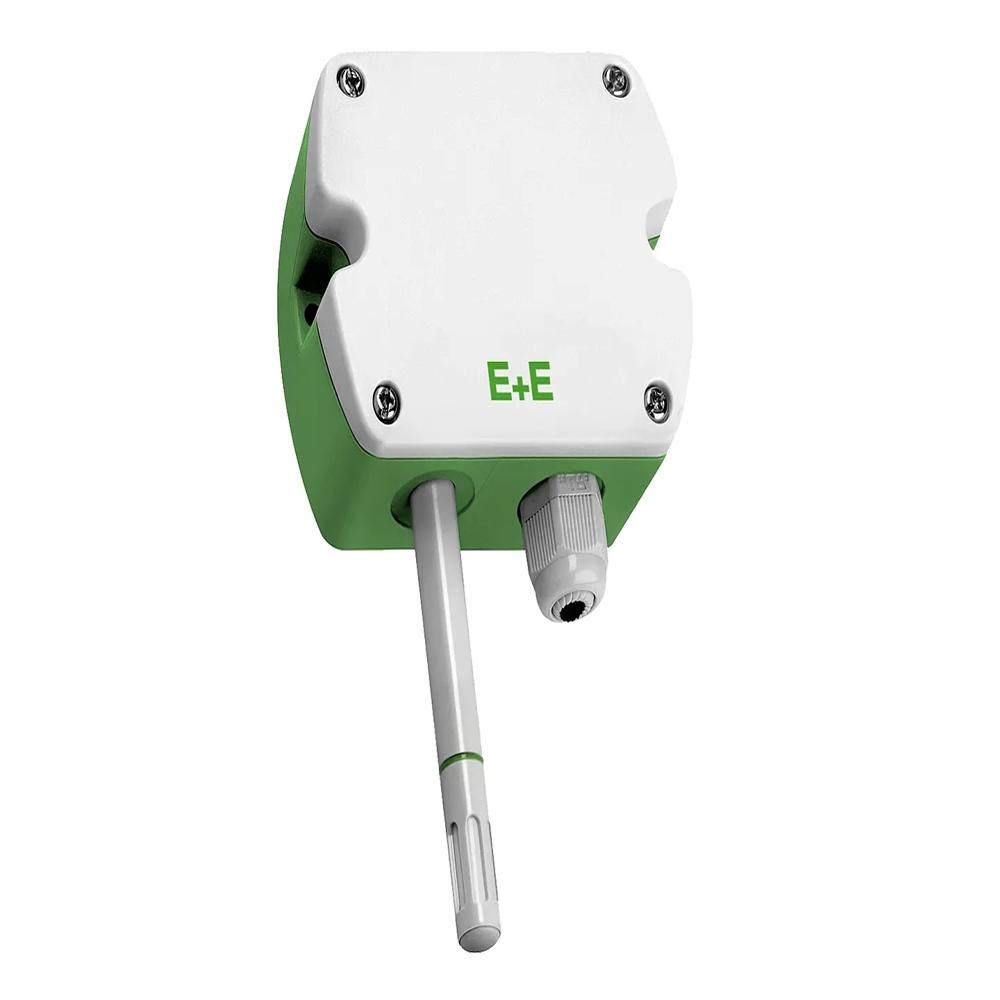

Temperature and Humidity Sensor

Temperature and Humidity Sensor Specification

Connectivity Type
Digital single wire

Protection Level
IP20

Current Rating
10 mA max

Cover Material
ABS plastic

Protection Class
Class III

Components
Sensor module, PCB, protective case

Features
Compact design, stable output, easy installation, low power consumption

Base Material
ABS plastic

Control System
Compatible with microcontroller platforms (Arduino, Raspberry Pi)

Rated Current
< 2.5 mA (measuring); < 50 mA (max load)

Cabinet Material
ABS Plastic

Operating Voltage
3.3V - 5V DC

Rated Operation Voltage
3.3V - 5V DC

Way
Digital Output

Thickness
Approx. 12 mm

Product Type
Temperature and Humidity Sensor

Material
High-quality plastic housing, sensor element of semiconductor type

Surface Finish
Matte

Standard
IS 9001:2015, CE, RoHS

Surface Color
White

Rated Voltage
3.3V to 5V DC

Maximum Output Current
10 mA

Dimension (L*W*H)
28 mm x 12 mm x 8 mm

Application
Environmental monitoring, HVAC, agriculture, weather stations, industrial controls

IP Rating
IP20

Cable Included
Yes, standard 3-pin cable

Response Time
<2 seconds

Mounting Type
Through hole or panel mount

Humidity Range
0% to 100% RH

Accuracy (Humidity)
2% RH

Operating Pressure
80 kPa - 110 kPa

Temperature Range
-40C to +80C

Sampling Rate
1 Hz (1 reading per second)

Accuracy (Temperature)
0.5C

Storage Temperature
-40C to +80C

Output Signal
Digital (single-wire serial interface)

Power Consumption
0.3 mW (measuring)

Temperature and Humidity Sensor Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Temperature and Humidity Sensor

Discover our Affordable Temperature and Humidity Sensor, resplendent in both form and function. Featuring a temperature range from -40C to +80C and 0% to 100% RH, this noteworthy sensor ensures reliable readings with a lofty accuracy of 0.5C (temperature) and 2% RH (humidity). Special Rate offers are available, making it ideal for HVAC, environmental monitoring, or industrial control settings. Enjoy stable output, swift response, and low power usage in a sleek, compact, matte-finish ABS design-find cost-effective precision for professional and DIY applications alike.

Versatile Application Sites and Advanced Features

This temperature and humidity sensor is engineered for a wide spectrum of application areas, from industrial controls and weather stations to agricultural monitoring and HVAC systems. Its compact size and digital single-wire output make installation effortless and integration seamless. The unit boasts a sturdy ABS plastic housing, ensuring durability, while offering essential features such as rapid response, stable performance, and high measurement accuracy. It is a noteworthy solution for precise environmental data collection across various operational sites.

Sample Availability, Global Export, and Swift Shipment Process

Sample units of this sensor are readily available to help you evaluate quality before placing a bulk order. With a robust export network, we cater to main markets worldwide, ensuring steady supply. Our efficient order completion and shipment workflow allows timely dispatch, typically delivering your sensors within days after order confirmation. Experience prompt service from initial inquiry to final dispatched order-each shipment is managed with meticulous care, ensuring your expectations are met at every step.

FAQ's of Temperature and Humidity Sensor:

Q: How do I install the temperature and humidity sensor in my project?

A: The sensor features a through-hole or panel mount design, allowing easy installation in various settings. Connect it using the standard 3-pin cable provided and interface digitally with compatible microcontroller platforms such as Arduino or Raspberry Pi.

Q: What are the main usage benefits of this sensor?

A: This sensor offers rapid response time, high accuracy, and stable output, making it ideal for precision environmental monitoring in areas such as agriculture, HVAC, and weather stations. Its compact and durable build adds practical value to your application.

Q: When can I expect my ordered sensors to be dispatched and delivered?

A: Typically, orders are processed and shipped within a few days after order completion and payment confirmation. Delivery timelines depend on your location and chosen shipping method, with tracking details provided for each dispatched shipment.

Q: Where can this sensor be effectively deployed?

A: This sensor is suitable for deployment in environmental monitoring systems, HVAC units, agricultural monitoring equipment, industrial controls, and weather stations, thanks to its wide measuring range and robust construction.

Q: What is the process for obtaining a sample of the sensor?

A: You can request a sample through our sales channel. After confirming your request, a sample unit will be shipped promptly to allow you to assess the product's features and performance before committing to a larger order.
